PCB Manufacturing Capabilities

Our full process parameters, published openly — check your board's requirements against them line by line before you even send an RFQ. Metric first, imperial in brackets.

Technical Specifications

Single-Sided
ParameterStandard Capability
Layer count1 layer
Min. trace / space0.15 / 0.15 mm (6 / 6 mil)
Board thickness0.2 – 3.0 mm (8 – 118 mil)
Min. holeCNC drill 0.2 mm (8 mil) · punch 0.65 mm (25.6 mil)
Min. slot widthCNC 0.55 mm (21.7 mil) · punch 0.7 mm (27.6 mil)
Min. solder-mask bridge±0.075 mm (3 mil)
Min. solder-mask opening0.15 mm (6 mil)
Outline (routing) tolerance±0.10 mm (4 mil)
Hole-size tolerance≤200 mm: ±0.15 mm · ≥200 mm: ±0.20 mm
Hole-position toleranceCNC ±0.05 mm · punch ±0.075 mm
Surface finishHASL, OSP, carbon ink
Carbon-ink resistanceSheet resistance 25 Ω/□
Double-Sided & Multilayer
ParameterStandard Capability
Layer count2 – 16 layers
Min. trace / space0.075 / 0.075 mm (3 / 3 mil)
Board thickness0.4 – 3.0 mm (16 – 118 mil)
Min. drill0.15 mm (6 mil)
Min. PTH slot0.5 mm (19.7 mil)
Aspect ratio10 : 1
Min. solder-mask bridge0.075 mm (3 mil)
Min. solder-mask opening0.038 mm (1.5 mil)
Outline (routing) tolerance±0.10 mm (4 mil)
PTH hole tolerance±0.075 mm (3 mil)
Hole-position tolerance±0.075 mm (3 mil)
Special processesPlated edges, castellated holes, countersinks
Surface finishENIG, HASL, OSP, immersion silver

Copper weight up to 30 oz on heavy copper products. Values beyond this sheet are reviewed case by case — ask our engineers.

See which board types these parameters apply to on the Products page.

Standard Delivery Times

Layer countPrototype / sampleVolume production
Single-sided1 – 3 days3 – 5 days
Double-sided2 – 4 days5 – 8 days
4 layers4 – 7 days7 – 12 days
6 layers6 – 9 days8 – 12 days
8 layers6 – 9 days10 – 15 days

Working days after engineering confirmation. Expedite options quoted on request.

Monthly Output

100,000 m²
Single/double-sided per month (1.08M sq ft)
80,000 m²
Multilayer per month (0.86M sq ft)
180,000 m²
Total monthly capacity (1.94M sq ft)

Production Equipment List

By Process (Equipment Ledger, March 2025)
ProcessEquipment & Quantity
LaminationVacuum lamination presses ×3 · LDI exposure ×1 · brown-oxide line ×1
DrillingSix-spindle CNC drilling machines ×60 · auto board cutter ×1 · diamond cutting machine ×1
Pattern imagingLDI direct imaging ×3 · CCD exposure ×1 · auto dry-film laminator ×1 · developing & scrubbing lines
Plating & etchingAuto PTH copper-deposition line ×1 · auto pattern-plating line ×1 · etching / tin-stripping lines
Solder maskScreen printers ×15 · LDI / LED / CCD exposure ×5 · pre-treatment line · curing ovens ×5
Legend printingLegend inkjet printers ×3 · semi-auto screen printers ×5 · curing ovens ×8
Forming & routingCNC routing machines ×14 · four-axis CNC drill-mills ×3 · CNC V-cut machines ×7 · hydraulic / mechanical punches ×4
Electrical testingFlying-probe testers ×12 · automatic testers ×6 · fixture testers ×10 · board washers ×2
Final inspection & labInline AOI · AVI scanner · impedance tester · microsection & 2D measurement · RoHS analyzer · ionic-contamination tester · hole-copper thickness gauge · high-temperature test chamber

From our internal equipment ledger dated March 2025 — 190+ machines in total, including group Sanzhao lines. Key systems include Han's Laser LDI and CNC equipment, Tongtai (Taiwan) drilling machines, Taiwan-made lamination presses, and Vega CNC drills.

What This Equipment Means for Your Order

60 six-spindle CNC drilling machines

Drilling is the classic bottleneck in PCB production. With this much drilling capacity, prototypes and volume orders don't compete for the same machines — lead times stay stable.

5 LDI direct-imaging systems

Laser direct imaging is the hardware behind our 0.075 mm (3 mil) fine-line capability and accurate layer-to-layer registration on multilayer boards.

12 flying-probe testers

Prototypes and small batches are electrically tested without building a dedicated test fixture. Every board ships 100% electrically tested.

Automated PTH & pattern-plating lines

Automatic copper deposition and pattern plating keep hole-wall copper uniform from panel to panel — consistent through-hole reliability, batch after batch.

3 vacuum lamination presses on-site

Multilayer lamination runs on our group campus and is never outsourced to third parties — registration and pressing quality stay under one roof.

Complete in-house test lab

Impedance, microsection, RoHS, ionic-contamination and high-temperature testing are all done in-house — test data available with your shipment on request.

This equipment feeds our IQC / IPQC / FQC / OQC inspection process — see how it all fits together on the Quality Assurance page.

Equipment Photos

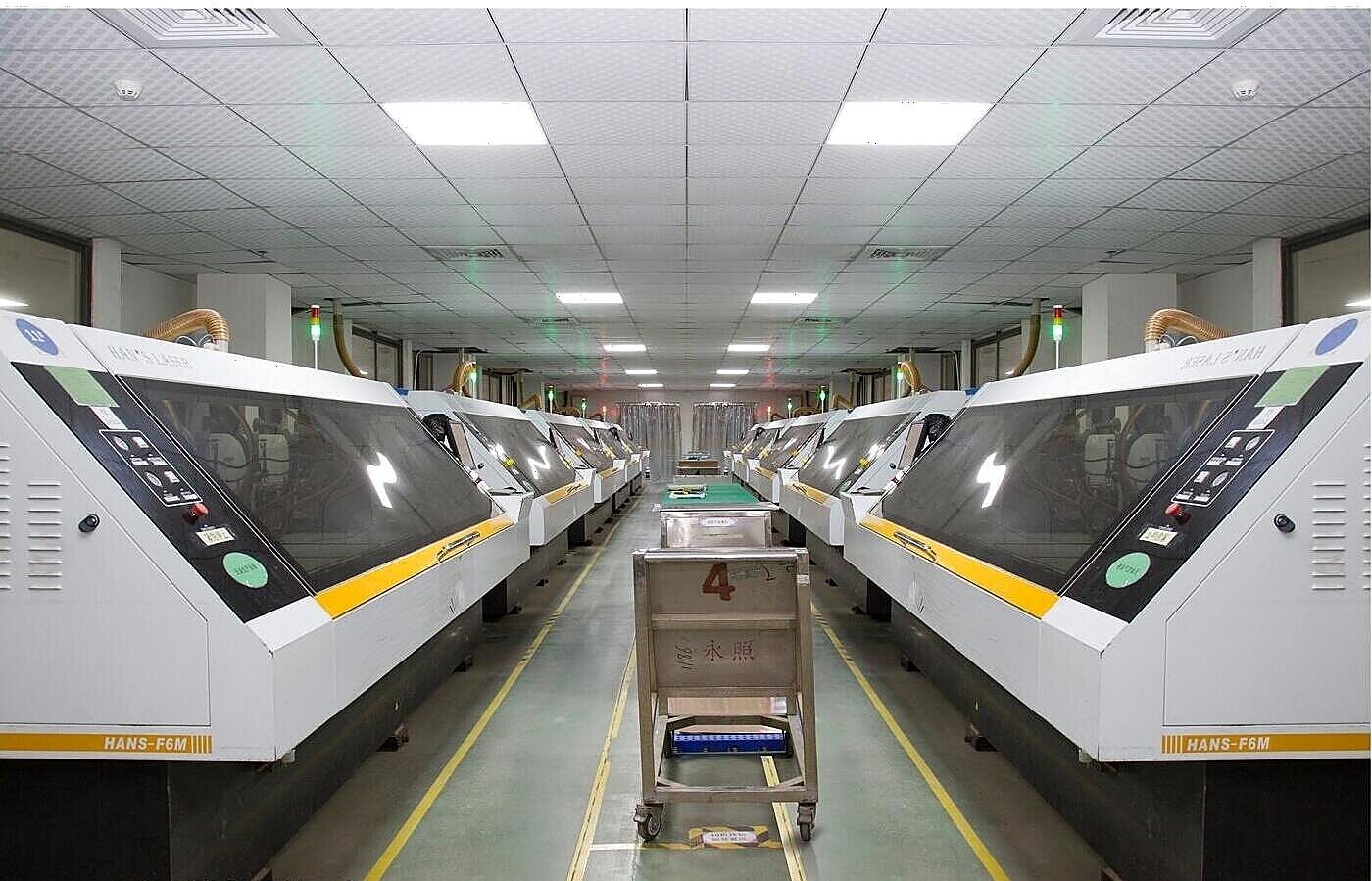

CNC Drilling Machines at the Yongzhao Electronics PCB factory
CNC Drilling Machines

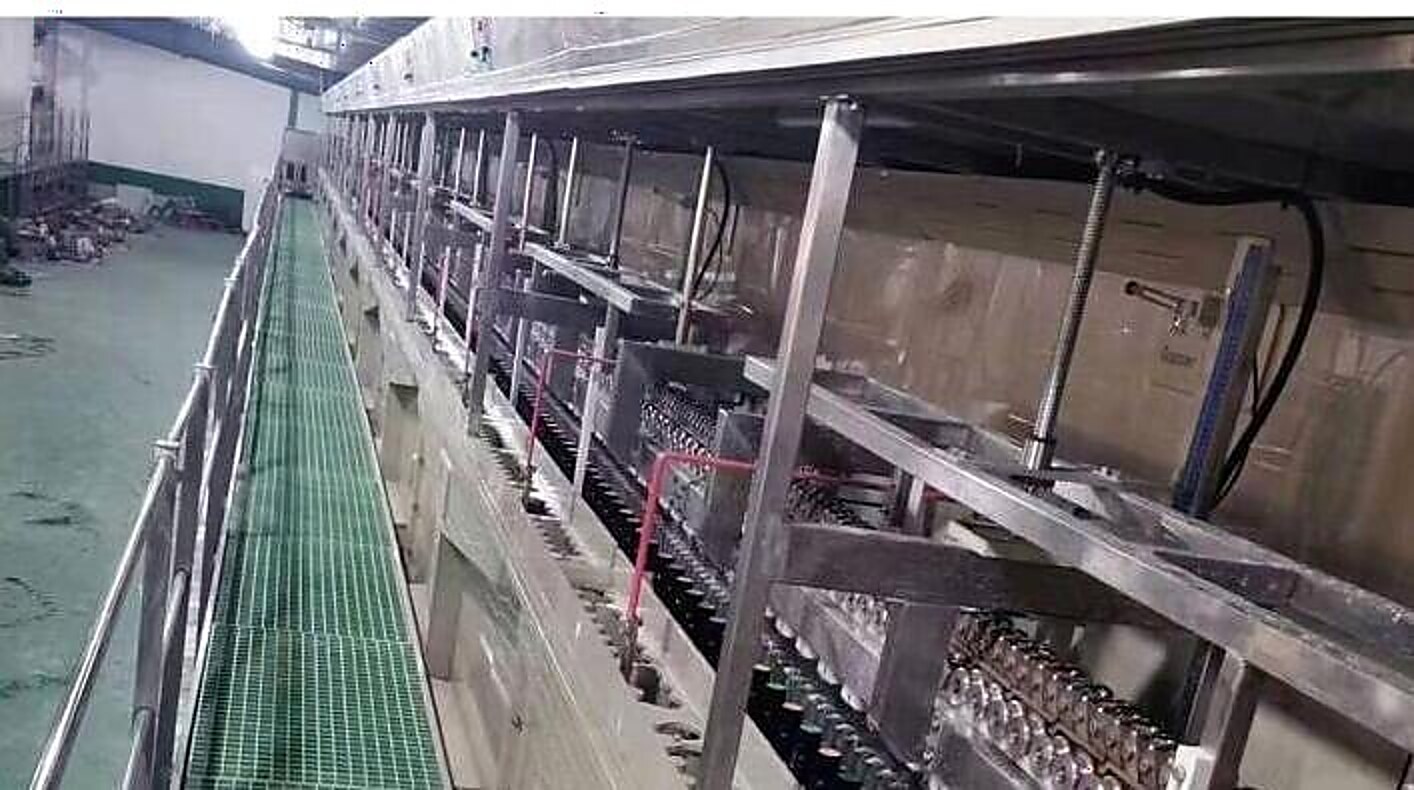

VCP Plating Line at the Yongzhao Electronics PCB factory
VCP Plating Line

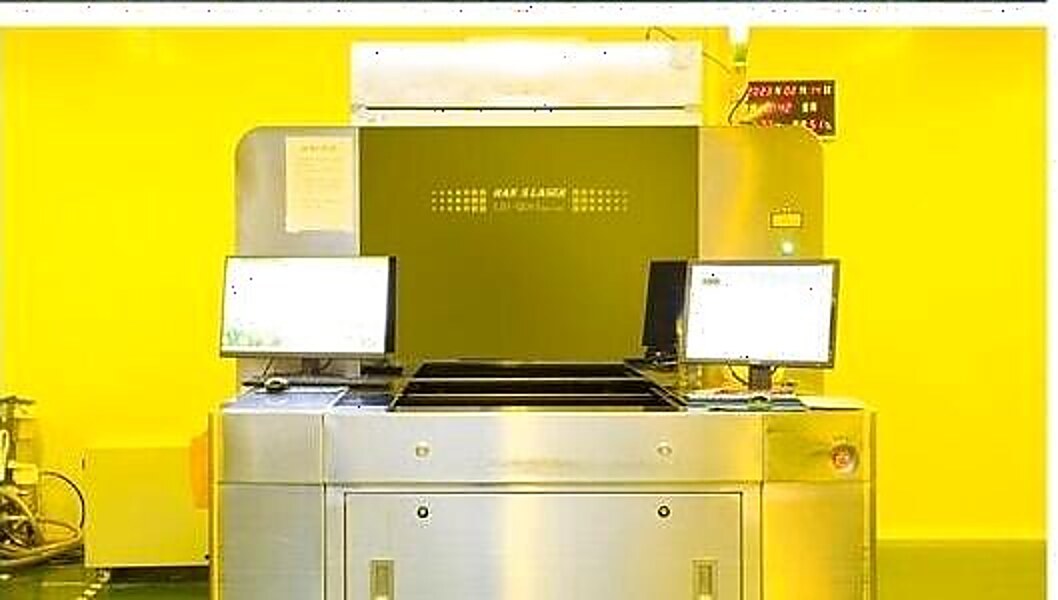

LDI Exposure System at the Yongzhao Electronics PCB factory
LDI Exposure System

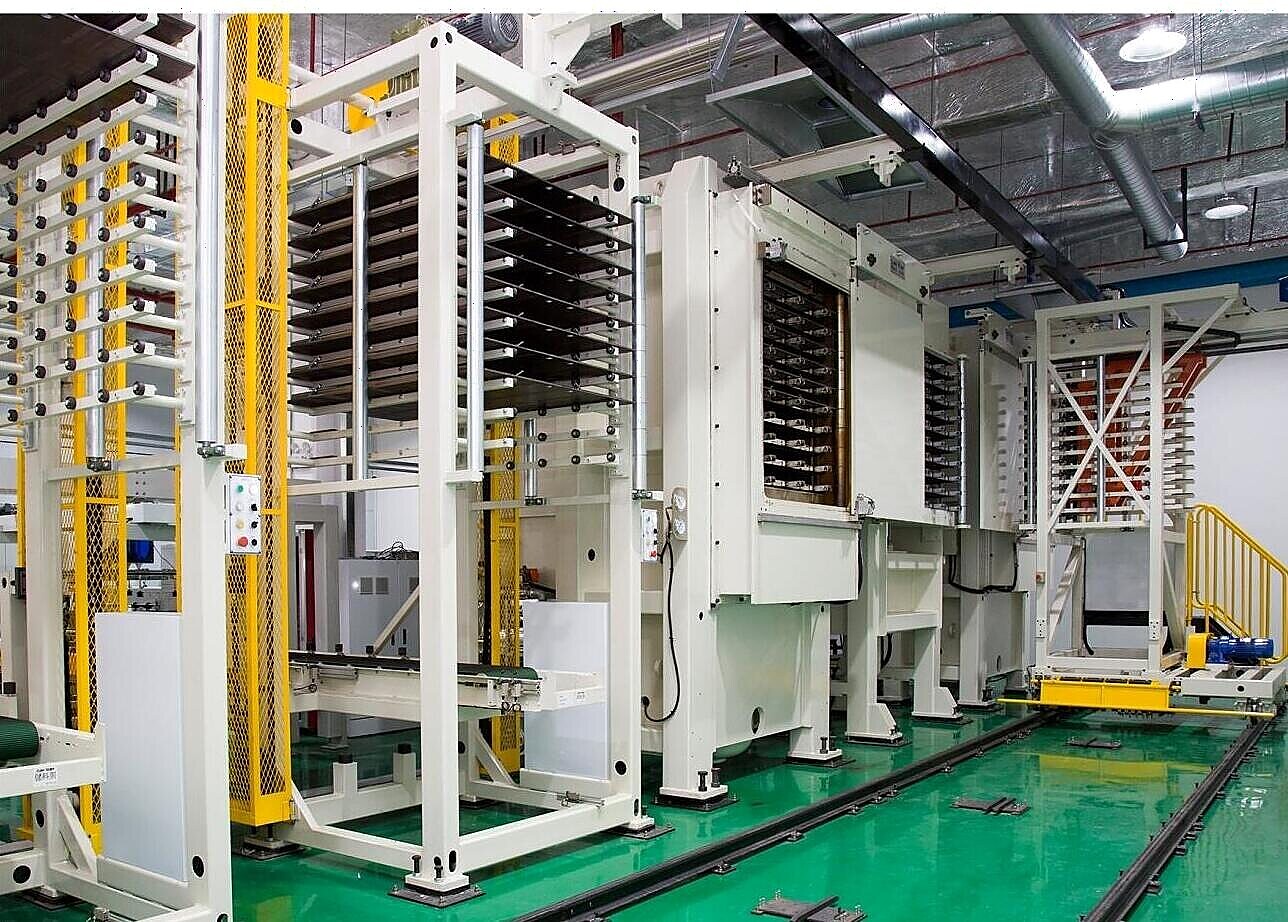

Lamination Press at the Yongzhao Electronics PCB factory
Lamination Press

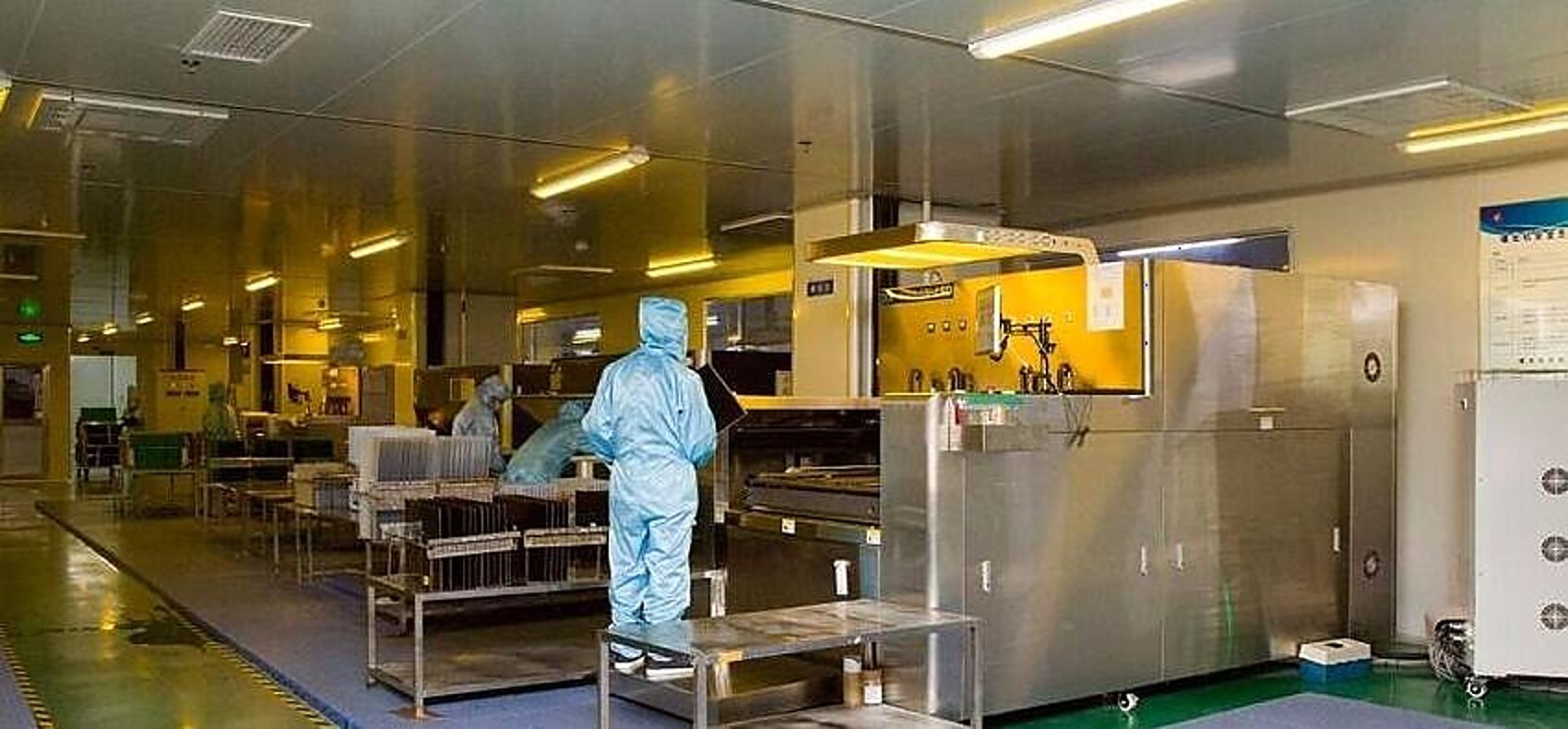

AOI Inspection at the Yongzhao Electronics PCB factory
AOI Inspection

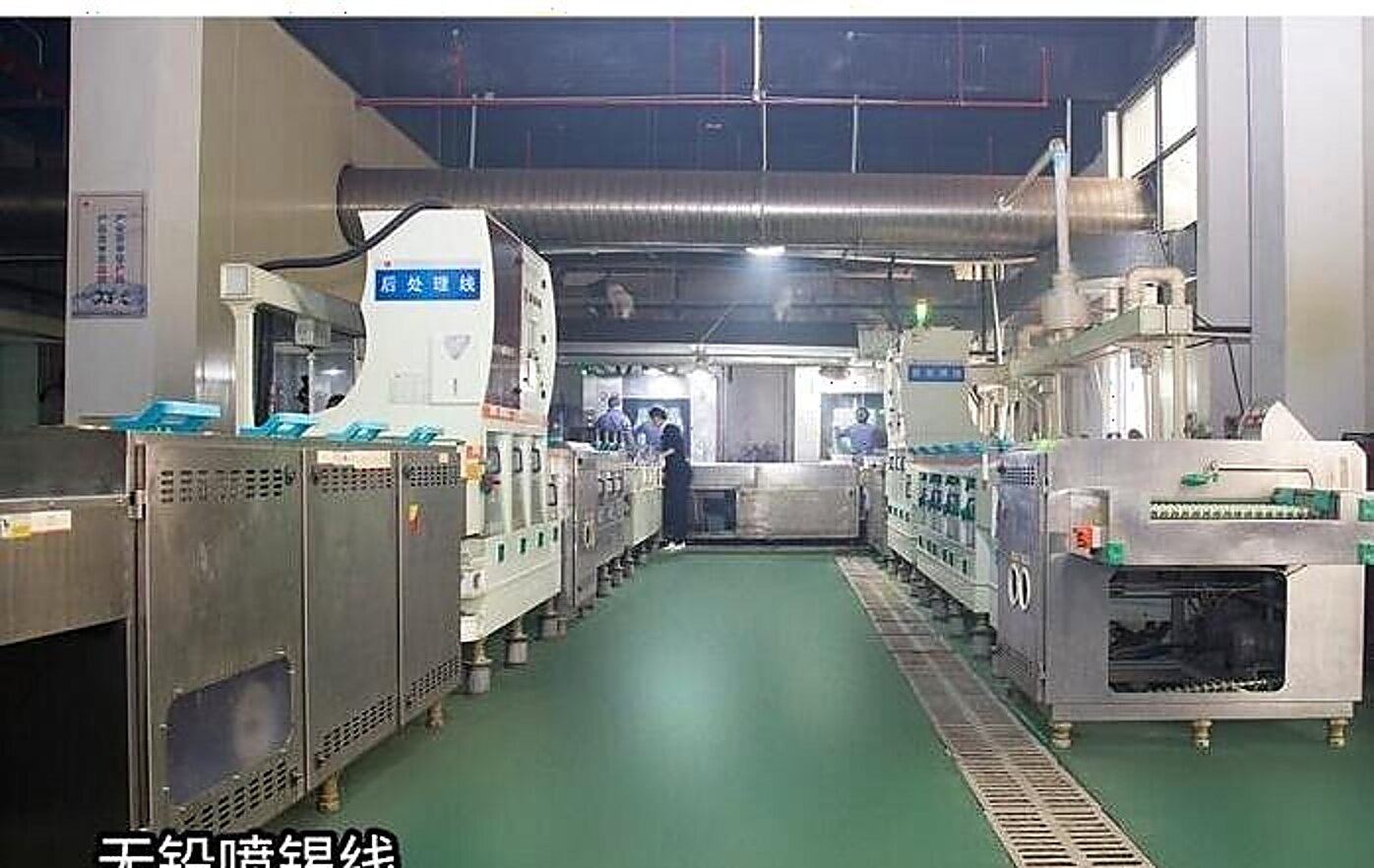

HASL Line at the Yongzhao Electronics PCB factory
HASL Line

Factory Video Tour

Raw footage from our own production floor, filmed July 2026 — each clip backs a capability claimed on this page. Click to play; nothing loads until you do.

LDI direct imaging — behind the 3 mil fine-line capability
Six-spindle CNC drilling
Pattern transfer post-processing line
Inline AOI inspection
Flying-probe test — prototypes without fixtures
Final AVI scanning before shipment
Finished-goods warehouse

Unedited floor footage — no agency production.
